Brass Bushing: The Definitive Guide

Brass bushings are a cornerstone of machinery design, offering a simple yet highly effective plain bearing solution that reduces friction, supports shafts, and extends equipment life. Crafted from copper-zinc alloys (brass) often enhanced with lead, tin, or other elements, these bushings combine wear resistance, corrosion resistance, and excellent machinability. Available in a wide array of types—sleeve, flanged, oil-impregnated, graphite-impregnated, sintered, and custom configurations—they suit applications from small bearings (e.g., 5/16 brass bushing) to large diameters (e.g., 2 inch brass bushing) and both imperial and metric standards (e.g., 8 mm brass bushing). This guide delves into their composition, benefits, types, sizing, and applications, and answers key questions like “What is the purpose of a brass bushing?” and “Why is brass used for bushings?”

What Is a Brass Bushing?

A bushing—also known as a bush or sleeve bearing—is an independent plain bearing inserted into a housing to provide a low-friction surface for a rotating shaft. When made of brass (an alloy of copper and zinc), these bushings leverage brass’s favorable mechanical and chemical properties.

Chemical Composition and Material Properties

Brass alloys used in bushings vary but typically consist of:

• Copper (Cu): 60–90 %
• Zinc (Zn): 10–30 %
• Lead (Pb): 1–3 % (improves machinability)
• Tin (Sn), Iron (Fe), Manganese (Mn), Aluminum (Al): trace to a few percent for enhanced hardness or corrosion resistance.

Alloy C84200 (Leaded Semi-Red Brass) contains Cu 78–82 %, Pb 2–3 %, Zn 10–16 %, Sn 4–6 %. Variants like CuZn35Mn2Al1Fe1 deliver tailored hardness and wear resistance.

Key Material Properties

• Wear Resistance & Reduced Wear: Brass alloys maintain dimensional stability under load, especially when oil-impregnated or graphite-plugged.
• Corrosion Resistance: Brass resists rust and oxidization in air and freshwater, making it suitable for marine and outdoor applications.
• Machinability & Cost-Effectiveness: Brass is soft enough to machine easily yet hard enough to protect shafts, and bushings serve as sacrificial wear parts.

Why Brass Is Used for Bushings

• Low Friction Coefficient: Brass alloys exhibit naturally low friction, reducing energy loss.
• Self-Lubrication Options: Oil-impregnated and graphite-impregnated bushings release lubricant during operation, enabling maintenance-free service.
• Durability: Brass can withstand shock, moderate loads, and moderate speeds, with specialized alloys improving hardness and lifespan.
• Corrosion Resistance: Non-rusting in many environments, brass extends maintenance intervals.
• Cost & Replacement Ease: Brass bushings are inexpensive to produce and replace, protecting more costly shafts and housings.

Types of Brass Bushings

Solid Sleeve and Flanged Bushings

• Sleeve Bushing (Brass Bushing Sleeve): A cylindrical plain bearing without flange, available as thick-walled, thin-walled, or sintered.
• Flanged Brass Bushing: Incorporates a radial flange for thrust load support and precise axial positioning.

Oil-Impregnated Bushings

Manufactured by sintering bronze and impregnating with ~19% SAE 30 oil, these bushings provide continuous lubrication and reduced wear under radial and axial loads.

Graphite-Plugged and Self-Lubricating Bushings

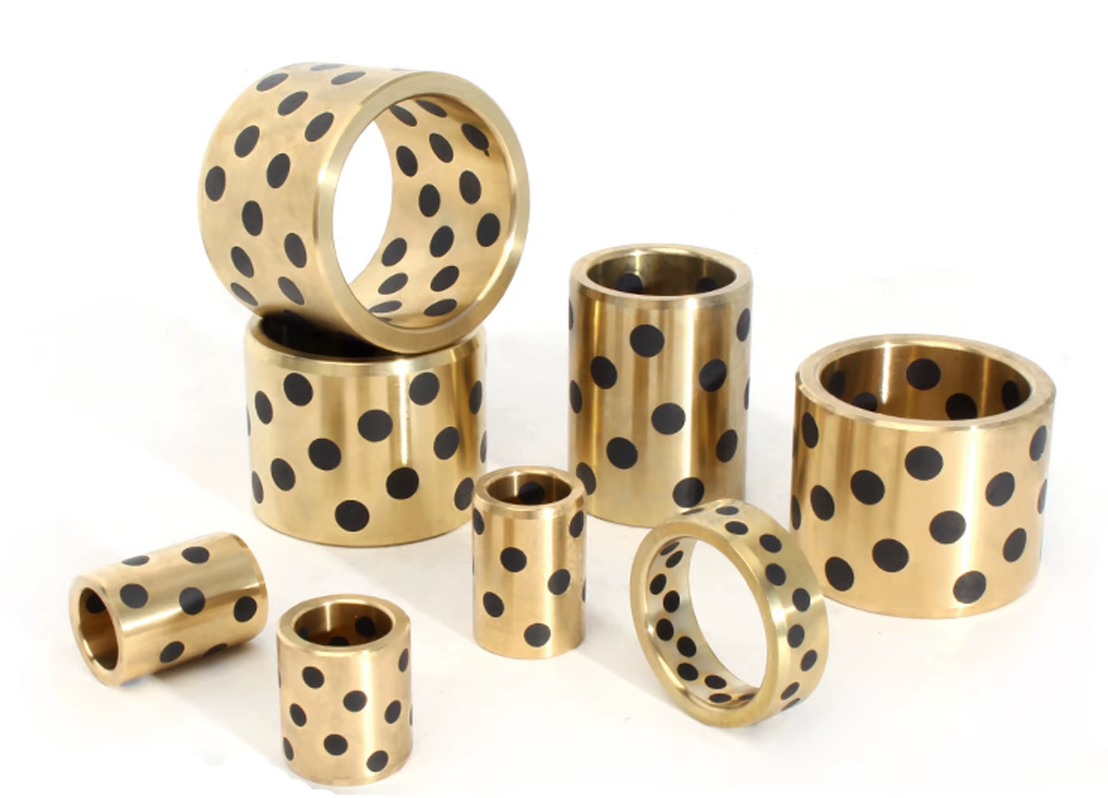

Bronze bushings machined from continuous cast bronze and plugged with graphite deliver maintenance-free lubrication at higher temperatures and loads.

Custom Brass Bushings

Special alloys (e.g., ZCuZn25Al6Fe3Mn3) tailored for corrosion, weldability, or strength, available in bespoke dimensions with designs like brass shoulder bushing, brass router bushing, or sintered brass bushing.

Sizing and Standards

Brass bushings accommodate both imperial and metric systems:

• Imperial IDs: 1 id brass bushing, 1/2 id brass bushing, 3/4 id brass bushing, 3/8 id brass bushing, 5/16 brass bushing, 5/8 id brass bushing, up to 2 inch brass bushing.
• Metric IDs: 8 mm brass bushing and others per ISO standards.
• Bronze Bushings by Size: Available in metric and imperial sizes for comparison or substitution.

Applications

Brass bushings find use across industries:

• Automotive: Water pumps, transmissions, and engine components rely on flanged and sleeve bushings for shaft support.
• Marine: Alloys like ZCuZn40Pb2 serve in saltwater environments for propellers and winches.
• Industrial Equipment: Motors, conveyors, and pumps benefit from low-noise, low-friction operation.
• Specialty Tools: Brass router bushing guides cutting tools; brass shoulder bushings support axial loads in precision assemblies.

Benefits Recap

• Reduced Wear: Oil- or graphite-impregnated options minimize contact wear.
• Wear Resistance: Alloy selection (e.g., high-strength brass) offers long service life under moderate loads.
• Corrosion Resistance: Brass withstands many environments, extending maintenance cycles.
• Versatility: From small brass bushings in electronics to large custom flanged brass bushings in heavy machinery, sizes and formats cover all needs.

Frequently Asked Questions

What is the purpose of a brass bushing?
A brass bushing supports and guides a rotating shaft within a housing, reducing friction, wear, and vibration.

Why is brass used for bushings?
Brass alloys combine low friction, corrosion resistance, machinability, and cost-effectiveness, and offer self-lubricating options for maintenance-free operation.

Brass bushings—whether oil-impregnated, graphite-plugged, or custom-alloy—remain a reliable choice wherever smooth, low-maintenance bearing solutions are needed. By understanding their composition, benefits, and array of types and sizes, specifiers can select the optimal bushing for any application.
